- 2-in-1 design, can use offilter1.25" & 2" specifications on the market
- With strong the ability of double strong magnetic adsorption, it is more convenient and much easier to install or pull out the filter.
- Advanced CNC integrated molding processing, quality assurance
- Lock screw on the side of it. The locking function is helpful on adjusting the tension to eliminate the gap, which is a double insurance for users.
- The filter drawer comes with the M42-M48 adapter To resolve the thread compatibility issue.

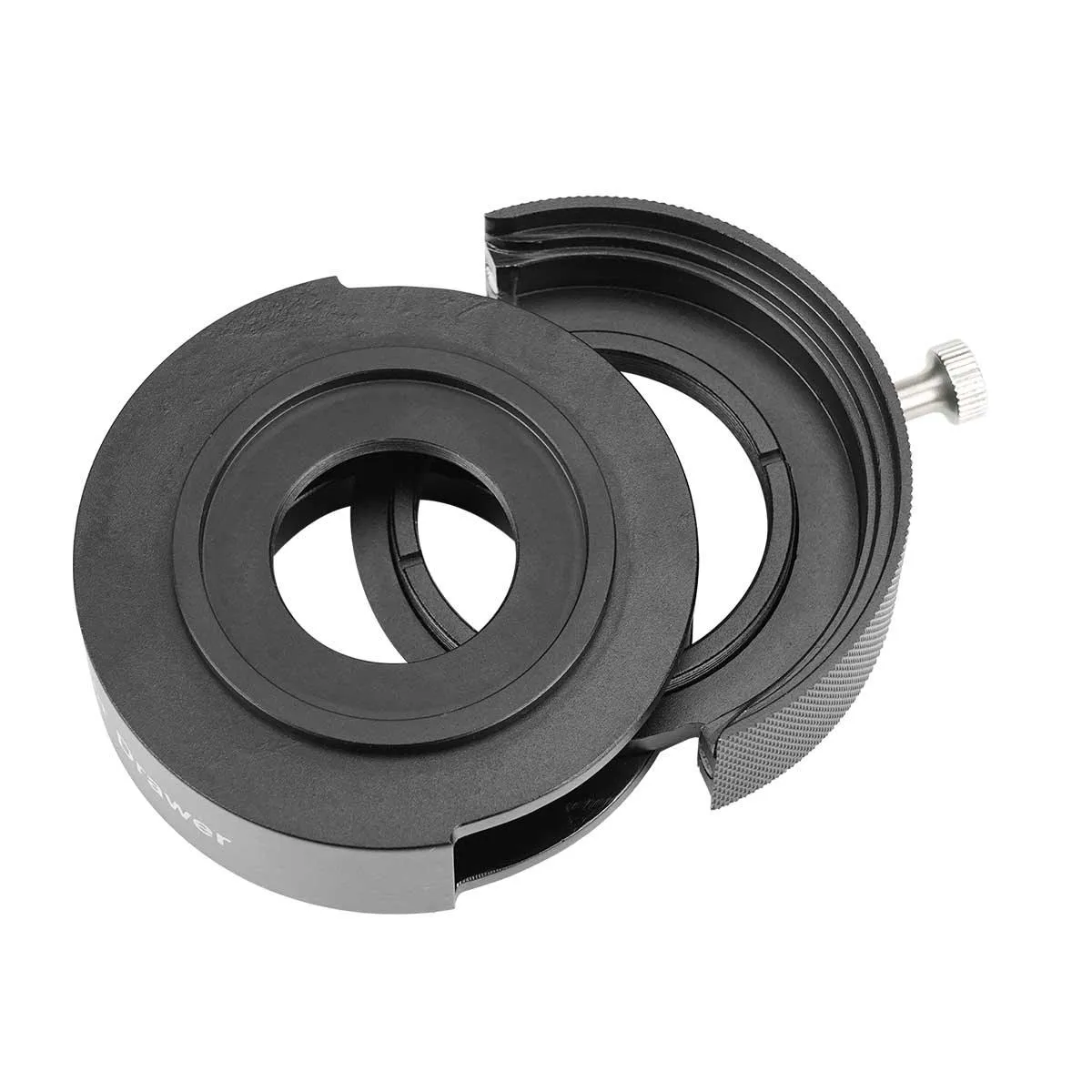

SVBONY SV226 filter drawer featuring the anti-light-leaking design that can effectively solve the light leaking issue under long exposure. The product is designed as a perfect circle, with a simple and beautiful appearance and good surface. Two pairs of strong magnets are used to achieve strong adsorption. 2-in-1 design, can use offilter1.25" & 2" specifications on the market.
Double Pair of Magnets
Compared with traditional screw rotation; magnet has stronger adsorption force; which is convenient for you to install and use.
Two Filter Holders
Standard 1.25" and 2" filter holder; plug and play, easy to use; reducing repeated disassembly and installation steps in a dark environment. Existing 1.25" and 2" filters can also be used; for beginners of photography; save the budget for changing filter sizes.
Filter Drawer Thickness 21mm
The thickness is related to back focal length; back intercept affects the quality of imaging; it limits the use of accessories and optical path length. Designed with the lock screw on the side of the filter drawer; the locking function is helpful on adjusting the tension to eliminate the gap; which is a double insurance for you.
Use With Telescope
Connect the telescope to the focal reducer and drawer filter; then connect the adapter to the camera. This SV226 filter drawer can use with SV550/SV503 OTA and F9198F/F9198K astronomy cameras.
Plastic Dustproof Storage Box
The packaging is equipped with a plastic storage box to ensure that accessories around the filter drawer can be stored.
| Brand | SVBONY |
| Model | SV226 |
| Product Name | Filter Drawer |
| Thickness | 21mm |
| Support Filter size | 1.25" &2" |
| Material | Aluminum |
| Camera side thread | M42 x0.75 (male) |
| Filter mounts thread | M48x0.75/M28.5x0.6 (female) |
| Telescope side thread | M48x0.75 (female) |
| Net Weight | 400g |
| Diameters | 130x120x100mm |
- Drawer Frame x 1PCS
- 2" Filter Slider x2PCS
- 2"-1.25" Filter Adapter x1PCS
- M42F-M48M Adapter x 1PCS
- Plastic Case x 1PCS
