This rectangular base channel made with ferrite magnet material is engineered with strength and performance to provide reliable support in a variety of applications. Its base channel design offers an even load distribution and reduced magnetic reluctance, allowing it to withstand heavy loading in demanding environments.

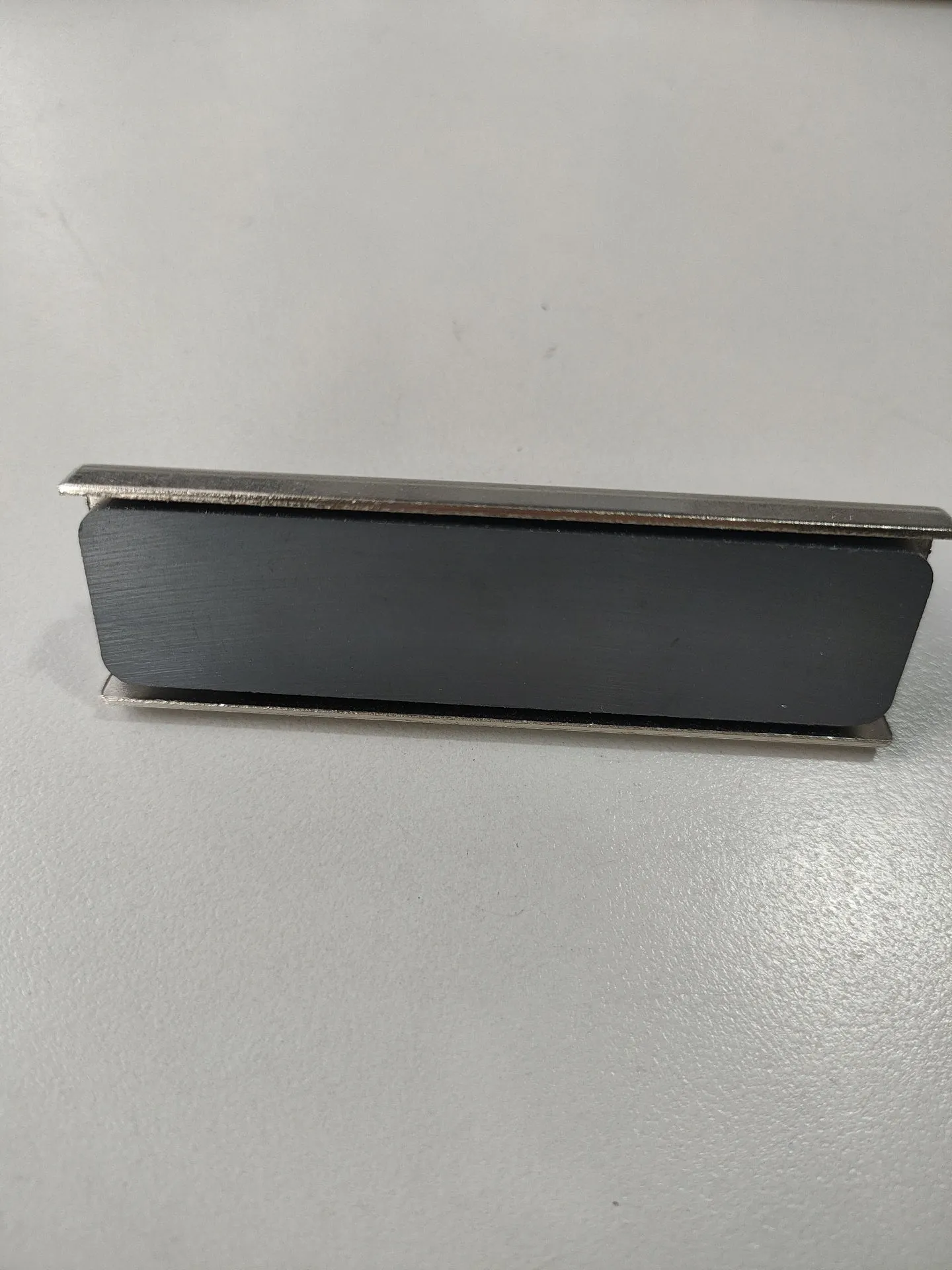

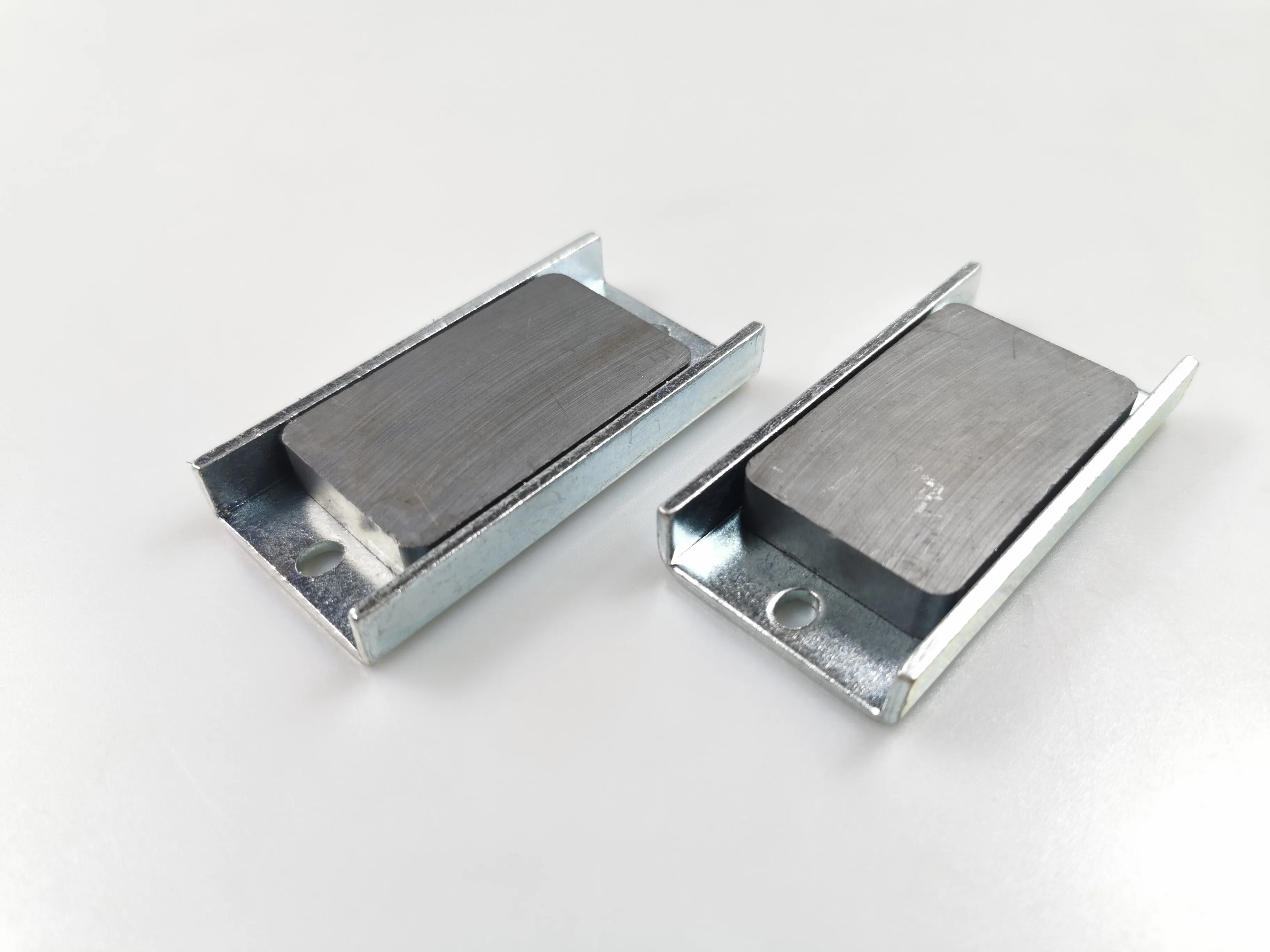

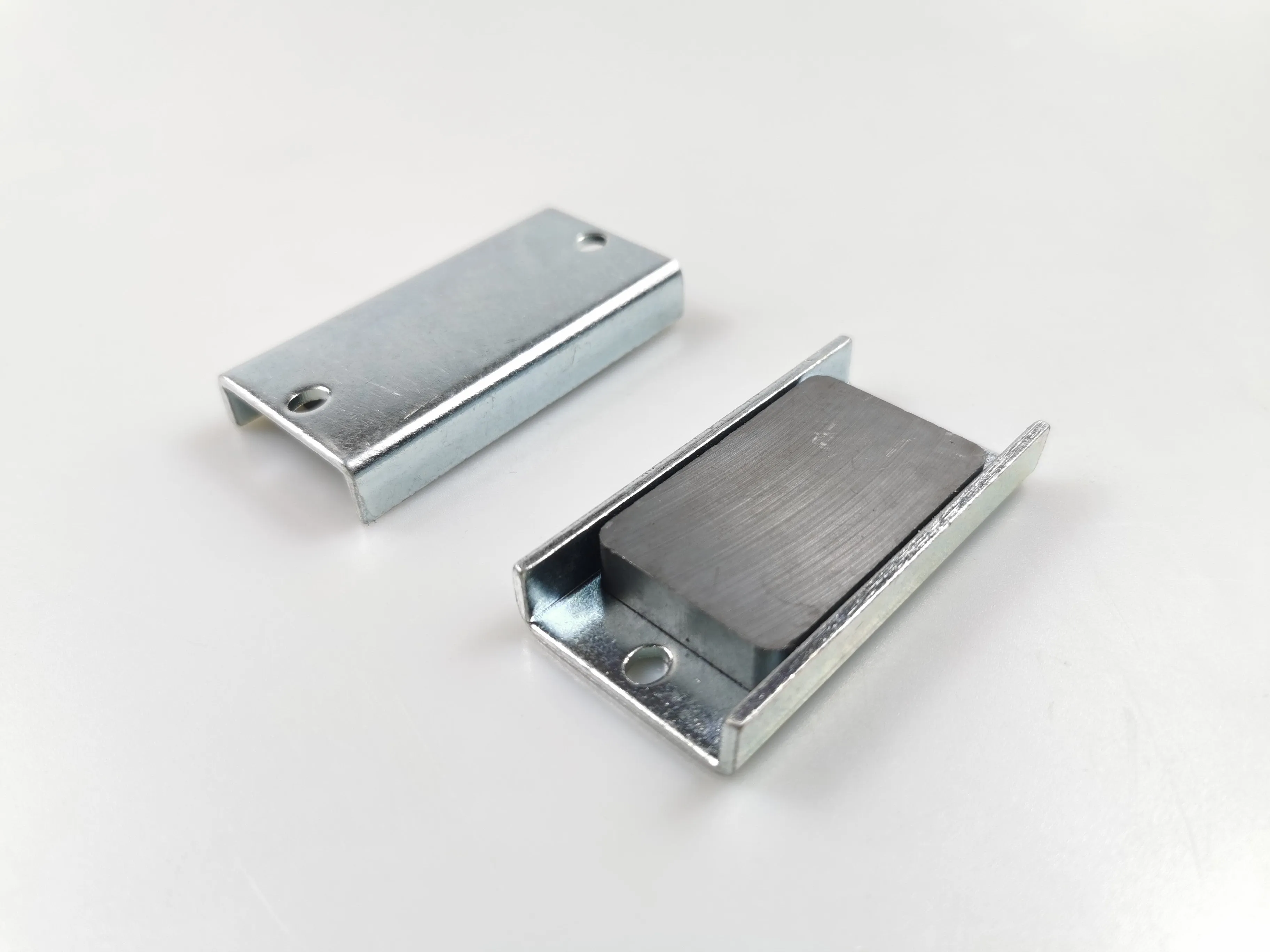

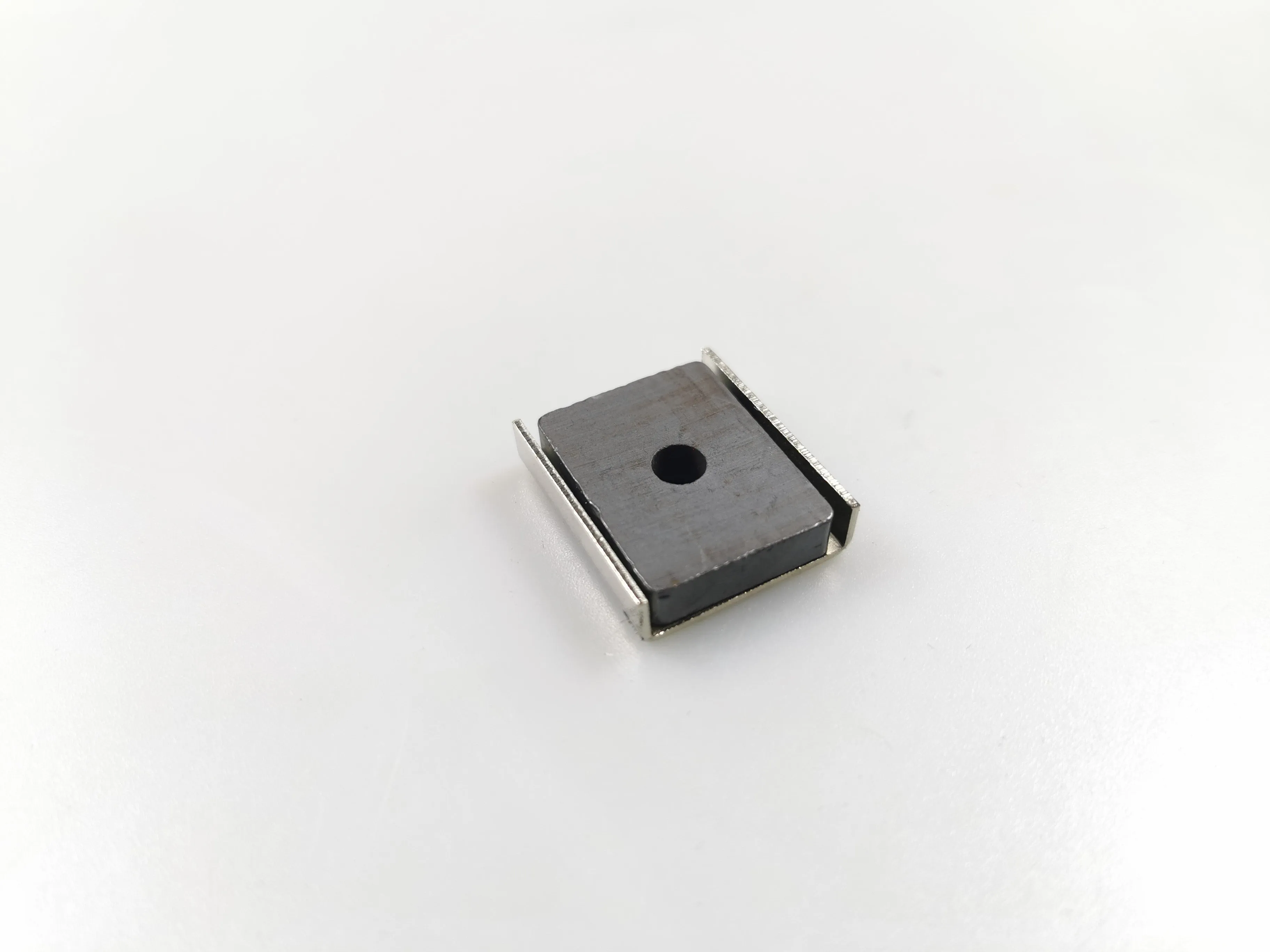

Rectangular base magnet are strong and powerful magnets. Magnetic on one side. A strong ceramic magnet is glued into a plated steel channel with holes for mounting.

No more drilling holes! Add a knob or a hook and use it to apply it to your objects on a metal surface.

To achieve the maximum magnetic power it must be applied on a flat surface.

Channel assemblies are up to 30 times stronger than ceramic magnets by themselves.

Common applications : Door latches, licence plate holders, sign and banner, etc.

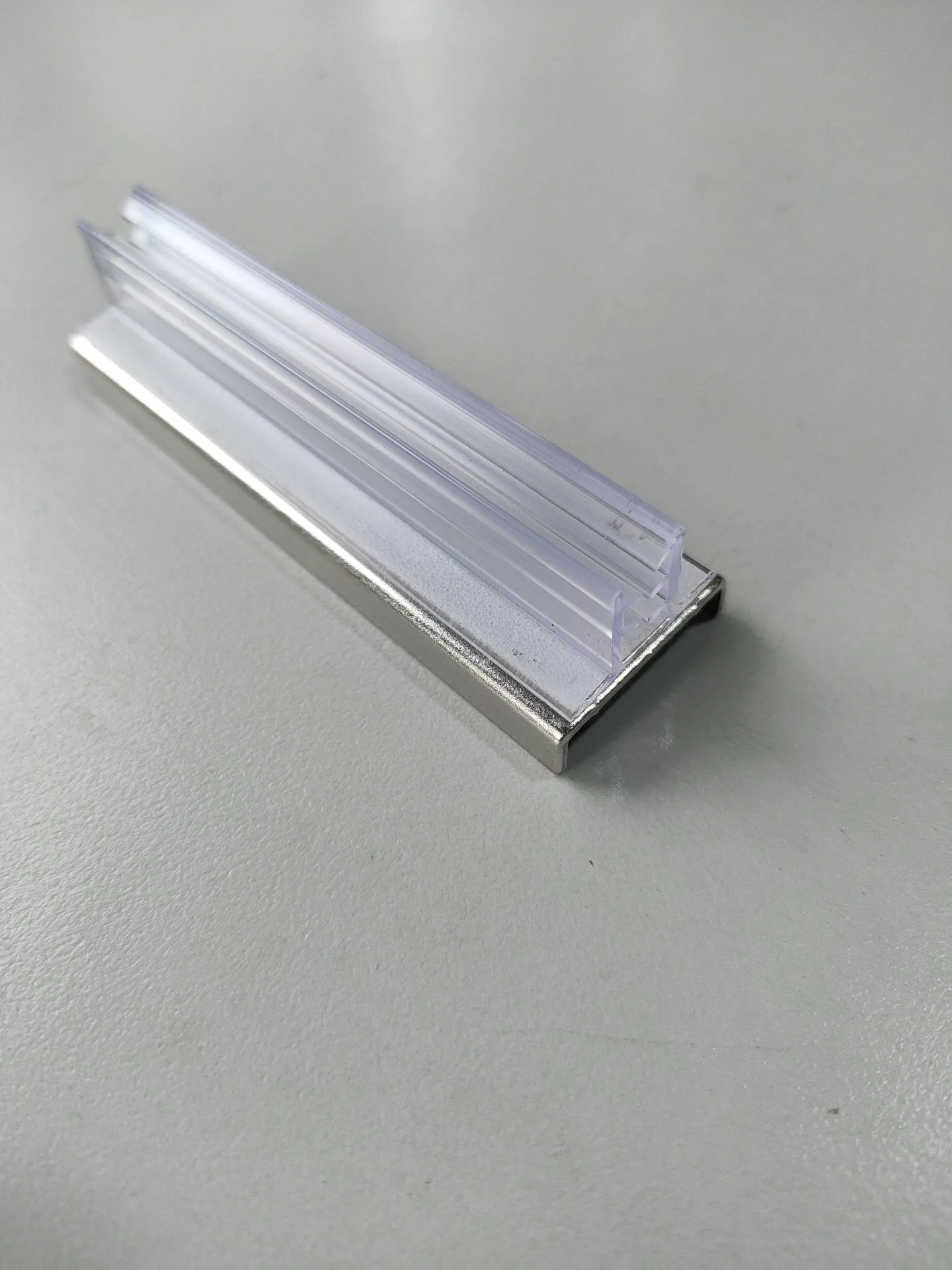

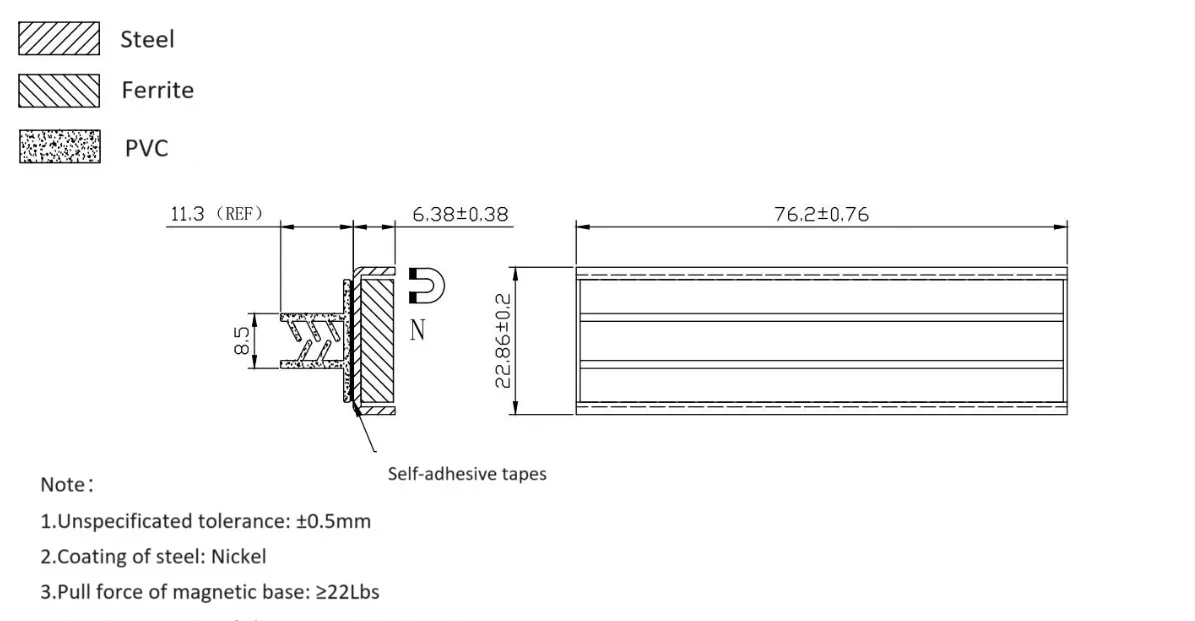

V-Clip option only available with model CH76-VCLIP.  Made of PVC with Vertical application.  Size of clip : 75x19x10.8mm with opening capacity up to 0.5mm thick.

Spec sheets :

CH-10

CH-35

CH-76VCLIP Download PDF
